Premium Portable Oxy Fuel Cutting Machines for precision

Profile Cutting Systems has a complete range of Koike Sanso portable oxy fuel cutting machines.

IK-12 Beetle

IK-12 Beetle
PCS Part No. IK-12 BEETLE

 CUTTING MACHINE FEATURES:

  • Functions controlled by forward/ off/reverse switch, clutch lever and speed adjustment knob.
  • Versatility and convertability inherent in the design ensure all types of straight line, cirde, and bevel cutting are simply performed.
  • The drive unit employing the single cone system (mechanical stepless variation device) assures constantly stable machine travel.
  • Plate track for straight line cutting is available in interlocking sections of 1.800 mm (70″) each wish may be extended indefinitely.
  • An adjustable radius bar for circle cutting is optionally available.
  • The torch holder makes the bevel cutting of the lower edge possible, and the torch up/down unit is easy to handle and durable.
  • Light in weight (9,5 kg = 20,9 lbs) for handling and transportation.

IK-12 Max

IK-12 Max
PCS Part No. IK-12MAX3-S

 Not affected by intense heat and fluctuating voltage, the maximum driving mechanism ensures steady traveling. Speed Control Mechanism of IK-12 MAX3 has adopted an exclusive Double Cone Stepless Speed control system developed by KOIKE, which functions with a condensor motor rotating at regular speed to prevent heat and voltage problems from occurring. No reduction gear is employed in the mechanism. Therefore, any knocking from backlash, noise or vibration does not take place.
Cutting Torch not included with drive unit. CUTTING MACHINE FEATURES:

  • S-100 – for square or V-bevel cutting A single torch unit equipped with a simple holder having no floating function. Standard Pipe Arm Length: 14″ (350 mm). Vertical axis steel pipe and Vertical adjustment up to 3″ (80mm).
  • S-200 – for square, V, Y or X-bevel cutting Two torch model of SR-100. Standard Pipe Arm Length: 20″ (500mm). Balance weight attached. Bevel cutting and parallel cutting both possible.
  • SP-100 – for square or V-bevel cutting A single torch unit equipped with a panta-holder having floating function to maintain the distance between tip and workpiece. Standard Pipe Arm Length: 14″ (350mm). Vertical axis steel pipe and Vertical adjustment is up to 5″ (120mm).
  • SP-200 – for square, V, Y, or X-bevel cutting Two torch model of SPR-100. Standard Pipe Arm Length: 20″ (500mm) – Balance weight attached. Bevel cutting and parallel cutting possible.



Handy Auto

Handy Auto
PCS Part No. BAAW0184

 POSITION DRIVES – Convenient all position drive attachments allow cutting from any position in any direction. Heavy-duty stainless steel is used for Handy Auto drive parts and accessories. The drive includes universal joints for smooth power transmission and for added protection.

  • HIGH EFFICIENCY PERFORMANCE – Handy Auto’s drive switch is linked to the cutting oxygen valve causing simultaneous operation of cutting oxygen and drive power.
  • DRIVE ATTACHMENTS QUICKLY CHANGED – Handy Auto can be set up for all types of applications with quick change drive attachments. Simple one hand change over is accomplished easily and quickly.
  • EASY TO USE – Lightweight, 2.7kgs (5.9 Ibs.), the Handy Auto is as easy to use as a manual hand torch. Hoses are attached at an angle to help you balance the tool.
  • HIGHEST QUALITY CUTTING – Safe and long lasting Koike Series 100 tips are supplied with each Handy Auto. Koike’s superior design and quality tips ensure fast, smooth cuts. All fuel gases may be used.

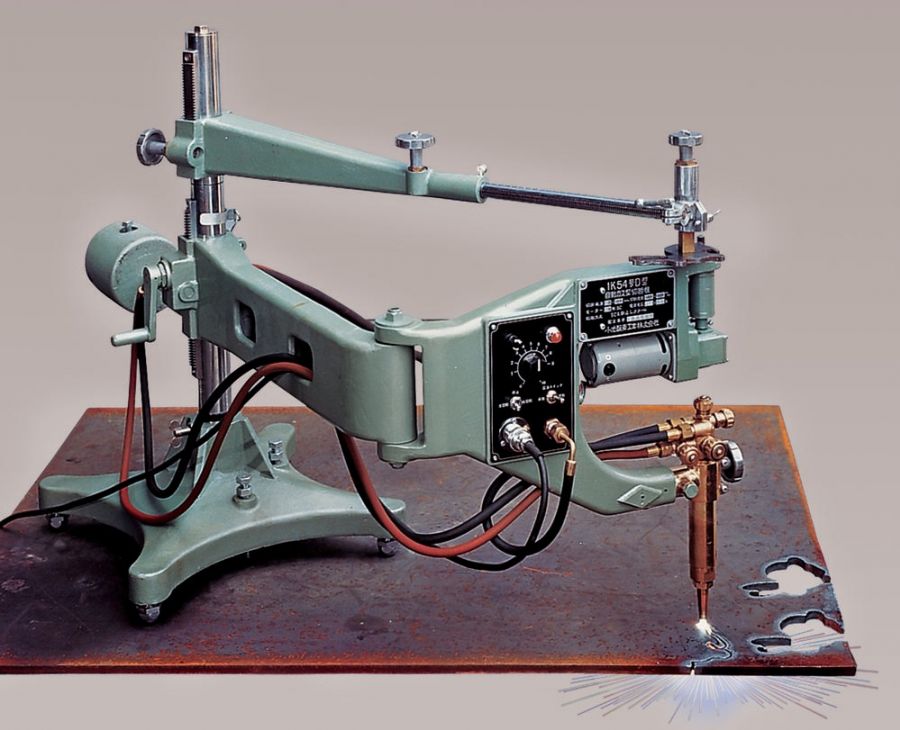

IK-54D

IK-54D
PCS Part No. BEAW1055



 The IK-54D is a quality constructed, hard-working gas shape cutter for high production accuracy. Compact and simple to operate, this fine Koike machine is most at home doing highly repetitive work where it can continuously produce the same precision flame cuts by following a steel template. A powerful magnet roller smoothly guides the cutting torch around any shape, cutting steel plate up to four inches in thickness. Weighing in at only 33 kg (72.5 lbs.). It can be carried anywhere, and its versatility of performance meets your exact cutting needs. The IK-54D offers all the convenient features of more expensive machines with no sacrifice in operational ease and dependability and promises to be an efficient time and labor saving addition to your working inventory.

IK-70-600

IK-70-600
PCS Part No. IK-70-600

 Portable Single Purpose Cutting Machine. Automatically and accurately flame cuts a wide range of circle sizes.
CUTTING MACHINE FEATURES:

  • Cutting Diameter:
  • Standard 30-1,000mm (1-3/16 – 40″)
  • Weight: Standard: 55 kb (121 lbs)
  • CAN BEVEL UP TO 45 Deg and cut through 50mm (2″) plate

IK-82

IK-82
PCS Part No. IK-82 S200



 IK-82 Series are the most advanced magnetic tracing type gas cutters on the market. Effective modular structure greatly reduces equipment weight, and ensures ease of operation.
These cutters are available in three cutting lengths; S, M and L. Types S and M employ interchangeable arms. Type L permits adjustment of the rail pipe on the rail carriage, which enables size adjustment according to work piece dimensions. Try the IK-82 for more effective cutting operations.CUTTING MACHINE FEATURES:

  • TRACER HEAD FOR HANDLING EASE AND HIGH-PRECISION CUTTING
  • LIGHTWEIGHT AND RUGGED STAINLESS STEEL ARM (types S and M)
  • MAGNETIC ROLLER SELECTABLE FOR YOUR REQUIREMENT
  • RAIL CARRIAGE FEATURING ADJUSTABLE RAIL LENGTH ACCORDING TO WORK PIECE (Type L)
  • EASY TIP REPLACEMENT




Picle

Picle
PCS Part No. BGAW0044



 Portable pipe cutting machine with a chain and gear driven drive system.MACHINE FEATURES

  • CUTS ANY SIZE PIPE BETWEEN 114-600MM (4″-24″) WITH A STANDARD CHAIN. CAN CUT LARGER DIAMETERS BY ADDING ADDITIONAL CHAIN LINKS.
  • DRIVE CHAIN WITH CLEANLY INTERLOCKING LINKS
  • DRIVE IS THROUGH A LARGE WORM GEAR AND WORM WHEEL
  • LOW GEAR RATIO – extremely smooth travel
  • GRADUATED BEVEL COLLAR
  • CONTROL VALVES – for fuel, oxygen, and oxygen located away from the heat



Auto Picle

Auto Picle
PCS Part No. BGBW0067



 Auto Picle-S is a remote control gas motorized pipe cutting machine. The optional special rail for torch tip guidance system provides high cutting accuracy and make the AUTO PICLE-S particularly suitable for large pipes.

CUTTING MACHINE FEATURES:

  • DESIGNED SPECIFICALLY FOR PIPE CUTTING
  • SPECIAL FIXED RAIL TIP GUIDE SYSTEM PROVIDES FOR HIGH CUTTING ACCURACY
  • GUIDE RAIL FOR VERTICAL PIPE CUTTING
  • CUTS BEVELS – gives a clean sharp cutting surface
  • SWIFTLY ADAPTS TO ANY PIPE DIAMETER
  • CUTTING OPERATIONS BY REMOTE CONTROL PENDENT


 OPTIONAL PARTS
Part Part No.
Beetle & Max Rail 1.8m BCD19102
S-100 Torch Set (ACET) IK-12 Max BCDW0001
S-200 Torch Set (ACET) IK-12 Max BCDW0002
SP-200 Torch Set (ACET) BCDW0004
SP-300 Torch Set (LPG) BCDW0005
L-100 Torch Set (LPG) BCDW1007
1-D RAIL (IK-72T) BJA99111
2-D RAIL (IK-72T) BJA99112
3-D RAIL (IK-72T) BJA99113
ATTACH BEVEL TORCH BQB00003
TWIN TORCH ATTACHMENT (3 SEAT) BQC00002

PCS also stock a comprehensive range of Spare Parts and Consumables for KOIKE Portable cutting machines. Contact us for more info.
