The Most Advanced CNC – Burny 10 LCD Plus
Industrial Grade Windows 8.1 PC
The Burny 10 LCD Plus remains the leader in PC-based shape-cutting motion control!
The PLUS is an industrial-grade PC, designed to operate in extreme shop environments where temperature and humidity extremes, metal dust, RF radiation, vibration, and constant machine movement are commonplace. It is easy to learn, easy to use, and allows multiple control and program tasks to be completed simultaneously.
The Burny 10 LCD PLUS CNC Control produces extremely precise and repeatable motion control by utilizing Windows® 8.1 Embedded (operating system) and tenAsys INtime® (real-time motion control).
All PCS machines using a Burny CNC come with a wireless connection and remote diagnostic software that allows PCS to remotely access your Burny for training, maintenance, diagnostics, upgrades etc.
 |
|
| Processor: | PC Based Intel Pentium® class and 1GB Memory |
| Display: | 15” LCD Color Display |
| Easy Touch Screen Operation | |
| Robust Industrial Hardware Design | |
| Operating System: | Windows® 8.1 Embedded Operating System combined with tenAsys INtime® (real-time motion control). |
| Pentium® cache memory | |
| Hard Drive: | High Capacity >80 Giga-Byte SATA Solid State Hard Drive |
| Operator Interface: | Full Interactive icon and soft key touch sensitive menu system |
| 200 Standard Shapes library which can be expanded | |
| Complete graphic display of parts with non-cutting moves shown in yellow | |
| Functionality : | Program Scaling |
| Program Rotation | |
| Remote Diagnostics | |
| Automatic acceleration and de-acceleration on corners | |
| Advanced cut-loss recovery options also forward and backup on path | |
| Programmable feedrate (can be over-ridden) | |
| Mirror in X, Y and both X and Y | |
| Imperial/Metric Programming | |
| Program Relocation (point move) | |
| Two Plate Alignment Schemes (alignment to selected corner, accounting for non square plate placement) | |
| Kerf Compensation | |
| Real Time Cut Path Display | |
| Home to Limit Switches | |
| Repeat Shapes with three grid patterns including chain cuts | |
| Advanced diagnostics | |
| Password protection for vital machine parameters (user changeable) | |
| Upgrades can be obtained on the internet free of charge | |
| Built in database for tracking consumable usage for plasma and oxy-fuel applications | |
| Connectivity: | Ethernet Connections for Windows® Networking, |
| USB conveniently located on front panel for easy maintenance and configuration | |
| Available Options: | Many Options available Including Job Track and On Screen Automatic Nesting software. SERCOS digital real-time optical fiber communication protocol, plus PCS applications: Drilling HMI PCS TurboGas PCS Plate Track PCS Smart Fume Extraction PCS Maintenance Miser App Many more – contact PCS for details |
Example Screenshots:

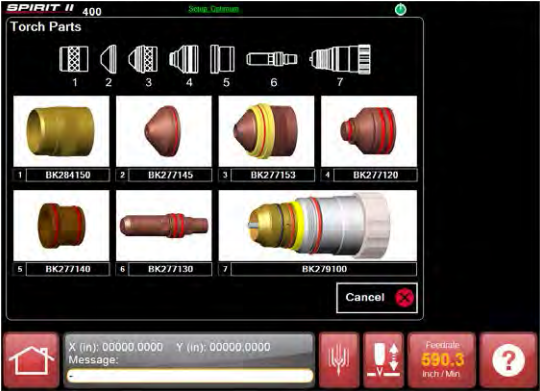

Integration with Spirit II Plasma Systems
Easy to use standard shape wizard
